Convenient Size:

6.9” x 6.9” (175 x 175mm) laser marking area
Net Weight: 64 lb. (29 kg)
Package Dimensions: 18 x 30.7 x 31 in. (46x78x79 cm)
Package Weight: 118 lb. (53.5 kg)
Enough space to tackle metalwork projects
The high-speed galvanometer drive system makes it easy to focus the variable lens.

Compatibility:

Includes EzCad2 software compatible with Windows XP/7/10 (32 and 64 bits)
Work side-by-side with programs like AutoCAD, CorelDraw, Adobe Illustrator, Photoshop, and more
Photo-ready for images in BMP, GIF, JPG, DXF, PNG, and AI formats, and more

Power:

Our fiber laser engraving machine’s integrated power supply features increased response speed and performance — it’s beaming with possibilities!
Laser Source: JPT
Galvanometer Source: Galvo-Tech
Output Power: 30W
Laser Wavelength: 1064 nm
Laser Frequency: 1-4000 kHz
Max. Engraving Speed: 275.6 ips (7000 mm/s)
Max. Engraving Depth: 0.002 in. (0.05 mm) on a single pass
Positioning Accuracy: ±0.000004 in. (±0.1 μm)
Est. Laser Service Life (MTTF): 100,000 hr.

Cutting Edge Features:

30W COLOR LASER: This 30W JPT MOPA fiber laser marking machine by OMTech will allow you to bring your ideas to life with greater speed, precision, and versatility than ever before; adjustable pulse frequency and width permit a rainbow of colorful designs on stainless steel and high contrast marking of anodized aluminum; with an MTTF over 100,000 hours, this durable laser cuts up to 0.05 mm on each pass at an accuracy of ±0.1 micron to render your most intricate images perfectly.
PRECISION OPTICS: This metal laser engraver's high-speed galvanometric system gives you extreme stability for quick scanning, engraving, and turnaround; make your mark at frequencies from 1-4000kHz on gemstones, silicon, steel, aluminum, brass, and more as the compact Fθ field lens uses its air-spaced design and protective and anti-reflective coatings to provide clean throughput with less than 1% distortion.
175x175mm WORKBED: Our 30W fiber laser cutter provides an expansive 175x175mm (6.9x6.9 inch) field with a red dot locator for fast and exact calibration and focusing; the workbed's built-in grid facilitates positioning bars that can be used to hold your material ino just the right spot every time as the laser works its magic at speeds up to 275.6 ips (7000 mm/s); and one pair of protective eyewear comes included to help handle the open design.
EASY OPERATION: This laser cutting and engraving tool comes bundled with EzCad2 software compatible with 32 and 64-bit editions of Windows XP, Vista, 7, 8, and 10 and a wide range of image formats; the included footpad trigger keeps batch work humming along; and when you need to engrave rings, bracelets, or other curved surfaces, your rotary axis attachment (not incl.) can be easily connected using the plug-and-play 4-pin connection port.
SUPERIOR SUPPORT & SERVICE: From garage artists to backyard businesses to professional jewelers and workshops, the OMTech community continues to grow thanks to our passionate dedication to making quality engraving available to all; order your own fiber engraver today and enjoy fast US-based shipping, a strong 2 year warranty, and our ever helpful customer service and tech support.

Package Includes:

1 x 30W MOPA Fiber Laser Engraver
2 x Positioning Bars
4 x Attaching Bolts
1 x Tape Measure
1 x USB Flash Drive (with Software)
1 x Protective Eyewear
1 x Foot Switch
1 x Power Cord
1 x Hex Wrench Set
1 x Tool Box
1 x Instruction Manual

Warranty:

No need to worry! We offer a 2-year warranty on all fiber laser engraving machines.

Certifications:

FDA Compliant
CE Certification
ISO9001 Quality Certification
One 45-minute Virtual Tech Support appointment with OMTech Specialists in Anaheim, California

Summary:

The perfect machine for marking on bare metal surfaces! Equipped with a Galvo lens, workbench surface, and more, our 30 watt fiber laser marking machine is ready to engrave your dreams into reality. Get ready to laser your way through a variety of metals with ease. Soon, you and your fiber laser machine will be beaming with possibilities!

Compatible Materials:

Acrylic
Hard Plastics
Brick
Granite
Marble
Tile
Aluminum
Gold
Silver
Stainless Steel
Brass
Titanium
Tungsten

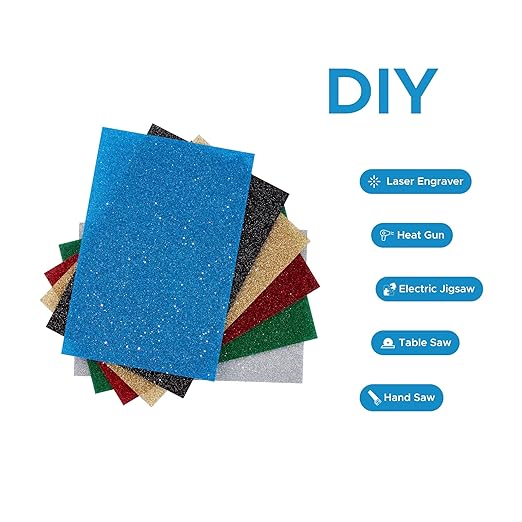

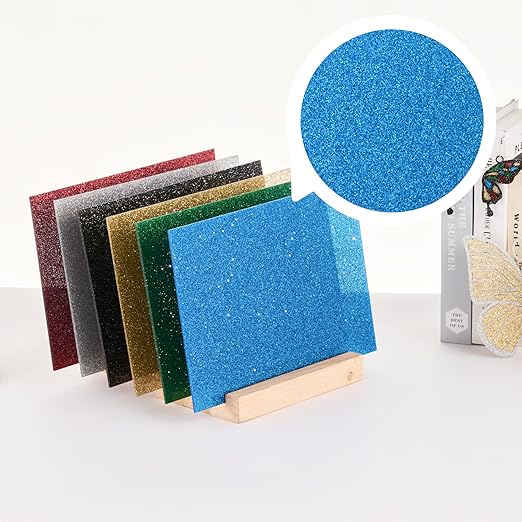

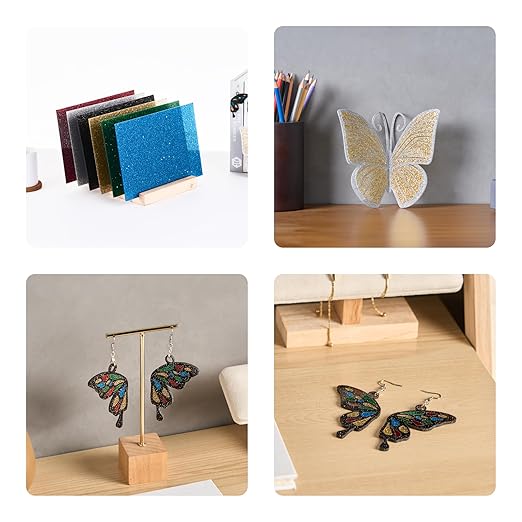

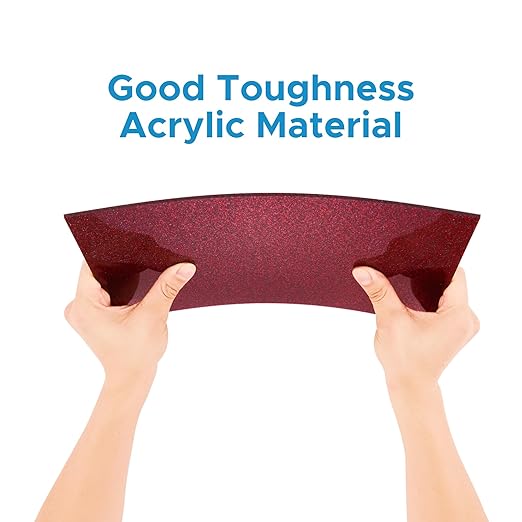

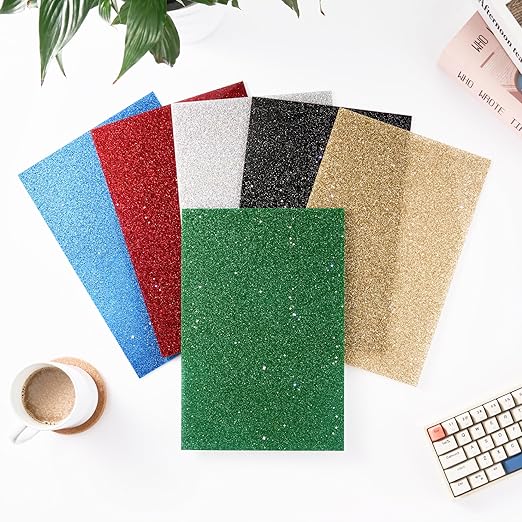

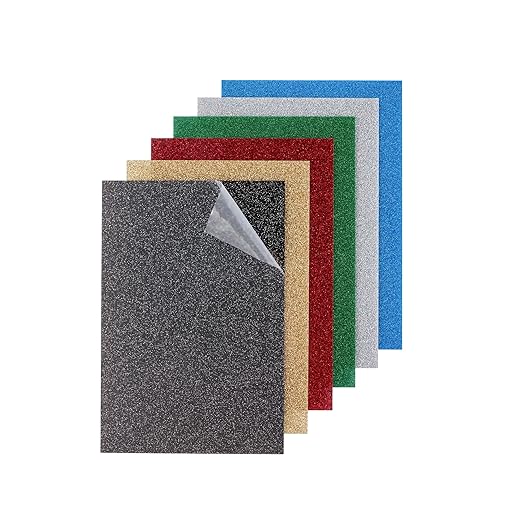

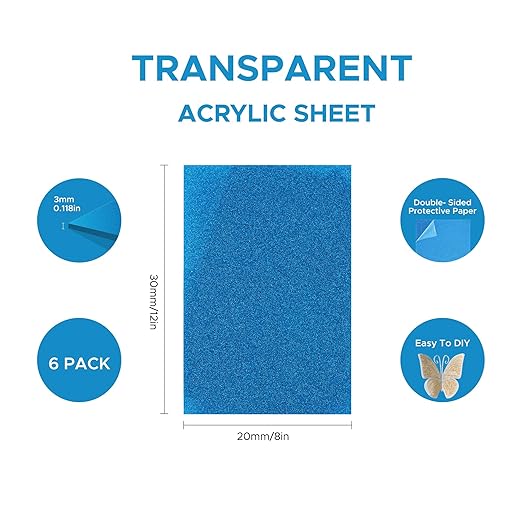

6-Pack Glitter Acrylic Sheets – 8"x12" | 0.1" Laser-Ready Plexiglass
